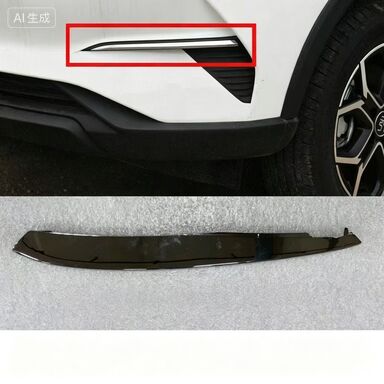

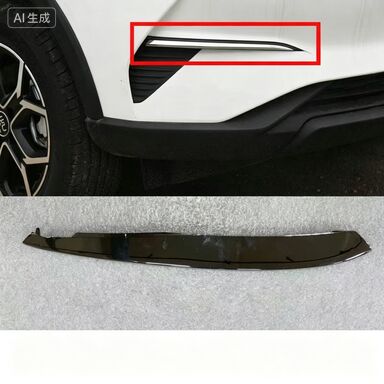

As a professional automotive exterior parts manufacturing factory, we proudly present the Front Bumper Chrome Trim Strip designed specifically for the BYD Yuan Series (Yuan/Yuan PLUS/Yuan UP/Yuan Pro) .

The BYD Yuan Proseries is a popular small/compact SUV under BYD's lineup, featuring the family Dragon Face design language. The through-type chrome trim strip is one of the most recognizable characteristics of the front fascia. Depending on the model version, the Yuan series front bumper trim strips come in various types, including the upper LOGO trim, headlight chrome trim, lower bumper trim, and ACC cover trim.

These chrome/silver trim strips serve as core visual elements of the front face, playing key roles in enhancing horizontal visual width and enhancing the vehicle's premium feel. In daily use, the front bumper trim strips are exposed to outdoor elements and are susceptible to damage from stone chips, car wash scratches, and collision impacts – making them frequently replaced exterior parts in collision repairs. Original OE numbers include SC2E-2803116 and 13161565-00.

Our product features ABS+PC chrome plating process, strictly developed to original Yuan series data via 3D reverse engineering, with mounting clip holes precisely matching the original 1:1. The trim surface features multi-layer electroplating for a lasting mirror finish, passing 96-hour salt spray testing for corrosion resistance and aging resistance. Direct replacement for damaged original parts for no-modification installation, compatible with multiple Yuan series models.

Strictly developed to original BYD Yuan Pro series OE specifications, with compatible OE numbers including SC2E-2803116, 13161565-00, and 13171356-00. Mounting clip holes, adhesive positions, and curved contours match the original 1:1. No modification required – direct replacement for damaged original parts for quick and easy installation. Compatible with Yuan PLUS and ATTO 3 models from 2022 onwards, as well as earlier Yuan series models.

The trim strip features ABS substrate with multi-layer electroplating process, achieving mirror-grade surface gloss. The electroplating layer has uniform thickness and strong adhesion, passing 96-hour neutral salt spray testing without corrosion or blistering. UV stabilizers are added to prevent fading, gloss loss, or chalking under long-term outdoor exposure. Whether through-type chrome trim or lower bumper silver guard plate – lasting brilliance is guaranteed.

Installation Instructions

Tool Preparation:

Plastic pry tool (for removing old trim)
Alcohol/cleaner (for surface cleaning)
Clean cloth
Hair dryer/heat gun (for low-temperature adhesion)

Installation Steps (Clip Type):

Remove Old Trim:Carefully pry clip positions of the old trim with a pry tool; remove old trim from bumper
Clean Mounting Area:Thoroughly clean dust, oil, and residue from the mounting groove; ensure surface is dry
Inspect Clips:Check if clips are intact – replace if damaged
Install New Trim:Align new trim with clip holes, press clips sequentially to secure
Check Fixation:Verify trim is properly secured with no looseness

Installation Steps (3M Adhesive Type):

Clean mounting surface (must be oil-free, water-free, dust-free)
Peel off 3M adhesive backing
Align and apply naturally – do not stretch
Press for >30 seconds to ensure adhesion
Recommended to avoid car washing for 24 hours

【Installation Precautions】:

When ambient temperature is low (<10°C), pre-heat mounting surface and adhesive with a hair dryer
Avoid water contact for 24 hours after adhesive application
Avoid scratching chrome surface with hard objects
If not fully adhered, use zip ties for auxiliary fixation for 24 hours
