Name: BYD Qin PLUS EV Rear Wheel Hub Bearing Assembly | 3rd Gen Hub Bearing Unit OEM Spec
Brand: Shijiazhuang Haobaijiu Trading Co., Ltd.
SKU: BYD Qin PLUS EV
Availability: InStock

Brand Name:	BYD
Model Number:	BYD Qin PLUS EV
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C

Detail Information

Product Description

Detail Information

Wheelbase:

2770 Mm

Seating Capacity:

Model:

BYD Qin PLUS EV

Electric Range:

605 Km (NEDC)

Maximum Power:

135 KW

Charging Time (Fast Charge 30%-80%):

30 Minutes

Charging Time (Full Charge, Ac):

8 Hours

Infotainment System:

DiLink 3.0 Intelligent Network System

Maximum Torque:

210 Nm

Motor Type:

Permanent Magnet Synchronous Motor

Battery Capacity:

71.7 KWh

Dimensions (L×W×H):

4765 Mm × 1837 Mm × 1495 Mm

Acceleration (0-100 Km/H):

7.3 Seconds

Drive Type:

Front-Wheel Drive

Vehicle Type:

Electric Sedan

Product Description

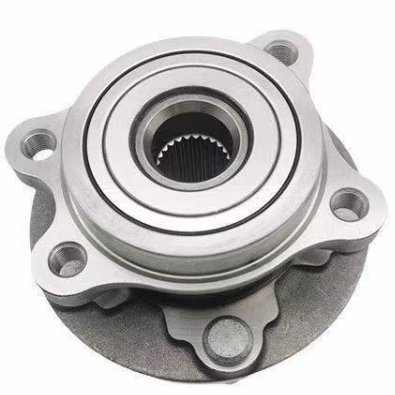

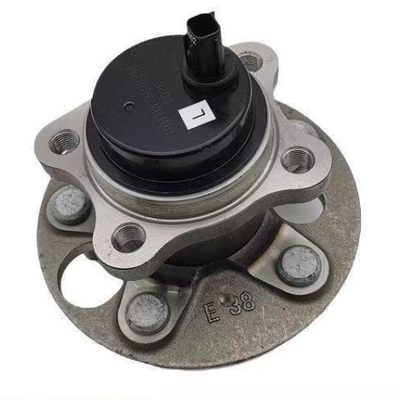

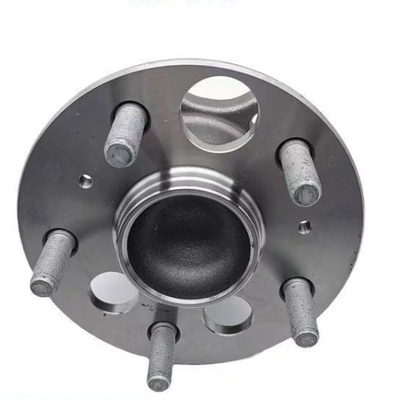

This product is specifically designed for the rear axle system of the BYD Qin PLUS EV (including Champion Edition and Intelligent Driving Edition). It is a core precision component that carries the rear wheel weight and ensures smooth wheel rotation—the rear wheel hub bearing assembly. As a third-generation wheel hub bearing unit, it integrates the bearing, hub, and flange into a single assembly, pre-filled with high-grade grease and featuring a lifetime maintenance-free sealing design, integrating load-bearing, guidance, and precision transmission functions. It is one of the most technologically advanced components in the automotive chassis system.

As a core sales model of BYD's pure electric vehicle lineup, the BYD Qin PLUS EV is available in multiple range versions including 420KM, 510KM, and 610KM. The vehicle features a MacPherson strut front suspension + torsion beam rear suspension chassis structure, with body dimensions of 4765-4795mm × 1837mm × 1515mm, a wheelbase of 2718mm, and a rear track of 1590mm. The rear wheel hub bearing carries the full rear weight and lateral forces of the vehicle, with its precision directly affecting wheel alignment parameters, braking performance, and driving safety. The rear bearing of the Qin PLUS features a double-row angular contact ball bearing design, capable of simultaneously withstanding radial and axial loads, adapting to the complex stress demands under high torque output and energy recovery conditions of pure electric vehicles.

As a professional manufacturer of automotive chassis parts, we develop and produce strictly according to BYD OEM technical standards. The bearing uses high-purity bearing steel (GCr15) material, precision-ground and processed with carbonitriding heat treatment, achieving raceway hardness of HRC 60-64, combining high strength and fatigue resistance. The bearing is pre-filled with -40°C to +120°C wide-temperature grease and features a double-lip labyrinth seal for excellent dust and water resistance. The product passes rigorous durability tests and dynamic balance inspections, with OE numbers precisely matching the original vehicle for direct replacement of worn or damaged original rear wheel hub bearing assemblies.
