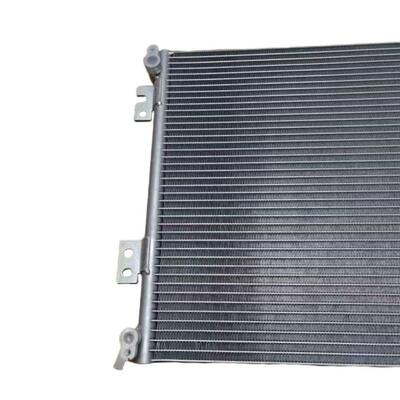

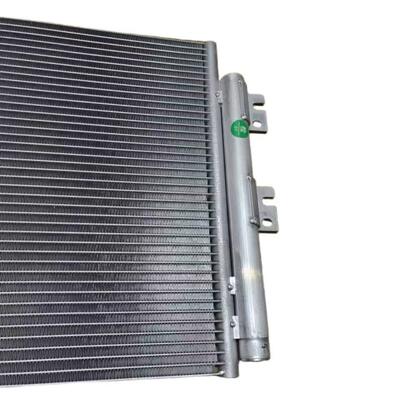

BYD Qin PLUS EV Condenser Assembly | A/C System Heat Exchanger OEM Spec

Brand Name: BYD
Model Number: BYD Qin PLUS EV
MOQ: 1
Price: Negotiable
Payment Terms: L/C
Detail Information
Seating Capacity:
5
Wheelbase:
2718 Mm
Electric Range (Nedc):
605 Km
Dimensions (L×W×H):
4760 × 1837 × 1495 Mm
Charging Time (Fast Charge):
30 Minutes (80% Charge)
Battery Capacity:
71.7 KWh
Price Range:
Approx. 150,000 - 170,000 CNY
Drive Type:
Front-Wheel Drive
Maximum Power:
135 KW
Maximum Torque:
210 Nm
Charging Time (Ac Charger):
8 Hours
Acceleration (0-100 Km/H):
7.3 Seconds
Vehicle Type:
Electric Sedan
Model:
BYD Qin PLUS EV
Motor Type:
Permanent Magnet Synchronous Motor
Product Description

This product is specifically designed for the A/C system of the BYD Qin PLUS EV pure electric vehicle. It is the core heat dissipation component responsible for cooling the high-temperature, high-pressure gaseous refrigerant discharged from the compressor into liquid form—the condenser assembly. As one of the four core components of the automotive A/C refrigeration cycle, the condenser acts as the "heat dissipation heart" of the A/C system, with its heat exchange efficiency directly affecting cooling performance, vehicle energy consumption, and driving range.

The BYD Qin PLUS EV is equipped with a wide-temperature high-efficiency heat pump system, capable of operating efficiently across a wide temperature range from -30°C to 40°C. The heat pump system absorbs external heat through refrigerant phase change cycles in low-temperature environments, providing heat for cabin heating and battery thermal management. Compared to traditional PTC electric heating technology, the heat pump system reduces A/C energy consumption by up to 40%, significantly improving winter driving range. As the core heat exchange component of the heat pump system, the condenser performs dual functions: in cooling mode, it condenses refrigerant via air-cooled heat dissipation; in heating mode, it acts as an evaporator to absorb external heat.

As a professional automotive thermal management system manufacturer, we develop and produce strictly according to BYD OEM technical standards. Using an all-aluminum parallel-flow structure composed of aluminum alloy multi-port flat tubes, louvered fins, and headers, integrally brazed using the CAB brazing process, the product offers high heat exchange efficiency, strong corrosion resistance, and reliable sealing. The product passes rigorous pressure and high-low temperature cycle tests, with OE numbers precisely matching the original vehicle for direct replacement of damaged or aged original condenser assemblies.
