Name: BYD New Qin EV Radiator (Electric Motor Cooling Radiator Assembly)
Brand: Shijiazhuang Haobaijiu Trading Co., Ltd.
SKU: BYD All-New Qin EV
Availability: InStock

Brand Name:	BYD
Model Number:	BYD All-New Qin EV
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C

Detail Information

Product Description

Detail Information

Battery Capacity:

47.52 KWh

Seatingcapacity:

6 Seats

Batterycapacity:

49.92 KWh

Rangepercharge:

305 Km (NEDC)

Electricrange:

305 Km (NEDC)

Dimensions (L×W×H):

4490 Mm × 1760 Mm × 1640 Mm

Seating Capacity:

6 Seats

Torque:

180 Nm

Electric Range:

305 Km (NEDC)

Batterytype:

Lithium Iron Phosphate (LiFePO4)

Safety Features:

ABS, EBD, ESC, Airbags

Vehicletype:

Electric MPV

Charging Time:

1 Hour (fast Charging)

Battery Type:

Lithium Iron Phosphate (LFP)

Curb Weight:

1720 Kg

Model:

BYD All-New Qin EV

Motor Power:

Up To 180 KW

Vehicle Type:

Electric Sedan

Productname:

BYD Destroyer 05

Maximum Power:

N/A (varies By Version)

Fuelefficiency:

1.4 L/100km (PHEV Mode)

Charging Time (Fast Charge):

Approx. 30 Minutes To 80%

Drivetype:

All-Wheel Drive (AWD)

Power Output:

113 KW

Product Description

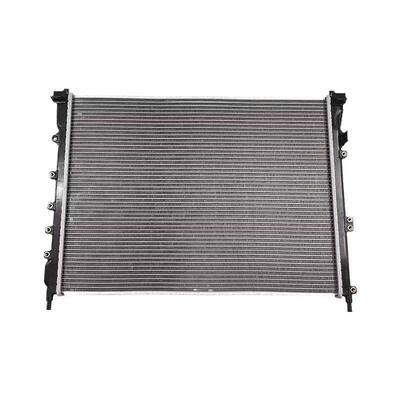

As a professional automotive thermal management system components manufacturing factory, we proudly present the Motor Radiator Assembly designed specifically for the BYD New Qin EV (Pure Electric Version) .

Unlike traditional fuel vehicles, the cooling system for pure electric vehicles is primarily responsible for cooling the drive motor, motor control unit (MCU), and on-board charger (OBC) . The BYD Qin EV is equipped with a permanent magnet synchronous motor, whose operating temperature directly affects power output and service life. As the core component of the thermal management system, the motor radiator is responsible for dissipating the heat absorbed by the coolant during circulation, ensuring the electric drive system operates within the optimal temperature range (approximately 65-85°C).

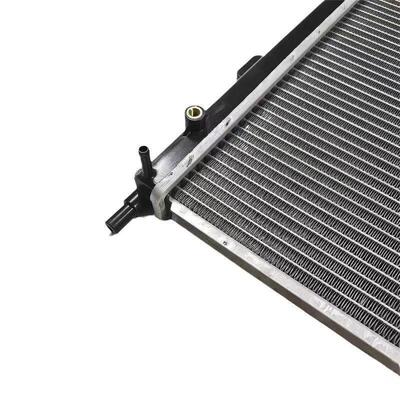

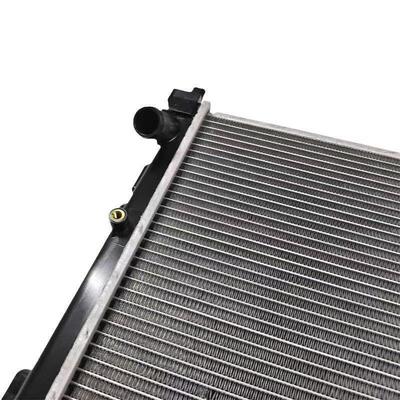

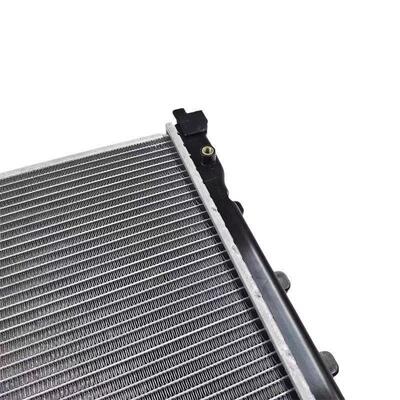

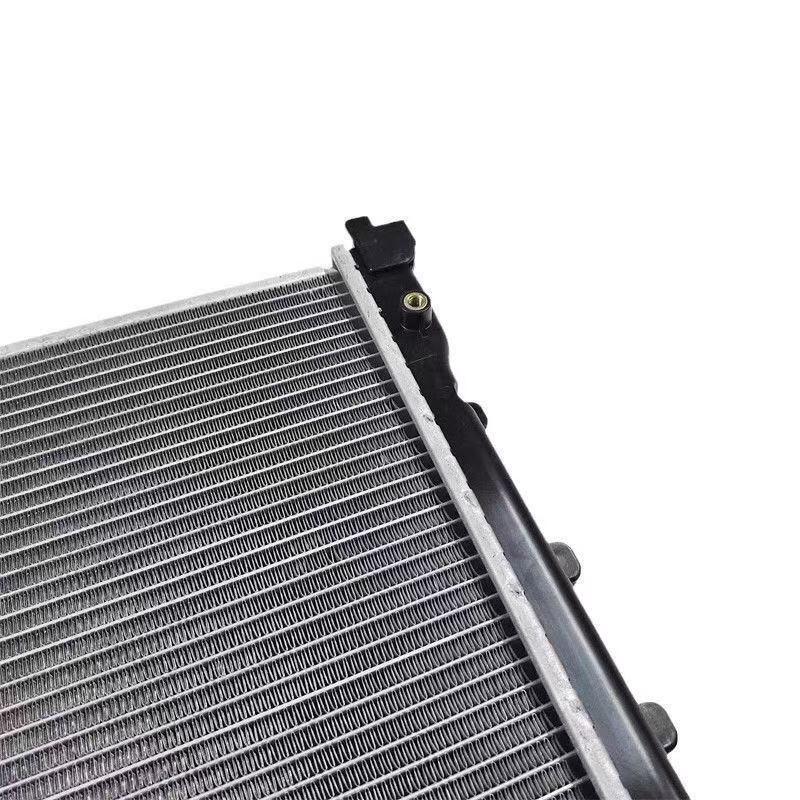

Our product features an all-aluminum brazed construction, strictly developed based on the original Qin EV radiator data, with dimensions and mounting holes matching 1:1. The radiator core utilizes a tube-and-fin design, offering high heat dissipation efficiency and low air resistance. Each unit undergoes 100% pressure leak testing and helium leak detection, ensuring zero-defect delivery. It effectively resolves common issues such as clogging, leakage, or reduced cooling efficiency found in original radiators.

Specially optimized for the cooling characteristics and coolant flow parameters of the BYD Qin EV drive motor. The radiator core features a high-density tube-and-corrugated fin construction, with heat dissipation area approximately 15% higher than traditional fuel vehicle radiators. The flat tube design reduces coolant flow resistance, working with the electric water pump to achieve efficient circulating cooling, ensuring the motor does not overheat under high-temperature conditions or prolonged climbing.

Manufactured using all-aluminum Nocolok brazing process, offering higher strength and corrosion resistance compared to traditional copper-lead soldering. The radiator core connects to plastic tanks via mechanical clinching with rubber seals, providing higher pressure resistance. The product passes 600-hour neutral salt spray testing, demonstrating excellent corrosion resistance suitable for coastal areas and winter de-icing salt conditions. designed service life exceeds 10 years/200,000 km.

Each product undergoes 0.3MPa air pressure immersion testing and helium mass spectrometry leak detection (accuracy up to 1×10⁻⁵ Pa·m³/s) before shipment, ensuring no micro-leaks. Mounting holes match original vehicle brackets 1:1, and original-specification seals are included with each product. Direct replacement without modification. Compatible with BYD New Qin EV models produced from 2020 to present.
