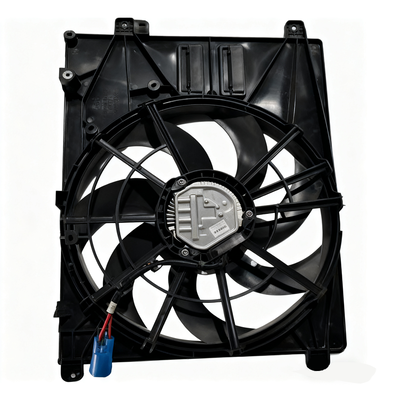

BYD Destroyer 05 Radiator Fan Assembly

This product is professionally designed for BYD’s popular Ocean Series model—the BYD Destroyer 05, serving as a core electric actuating component for engine cooling system and air conditioning condenser heat dissipation.

As a professional manufacturing factory specializing in automotive thermal management parts, our electronic cooling fan assembly strictly follows OE specifications, dedicated to providing the global aftermarket with high-efficiency, low-noise, high-reliability replacement solutions.

The electronic fan assembly is a critical actuating element of the vehicle cooling system—during low-speed driving or idling, it forces outside air through the radiator and condenser, ensuring the engine and air conditioning system operate within optimal temperature ranges. Its quality directly affects engine life and air conditioning performance .

Compatible with all BYD Destroyer 05 models (including 2022-2025, 55KM/120KM range versions, Champion Edition, and Glory Edition). According to user feedback, the Destroyer 05 DM-i has experienced electronic fan failures causing air conditioning malfunction—a high-quality fan assembly is essential for normal vehicle operation .

The Destroyer 05 DM-i is equipped with the 1.5L Xiaoyun hybrid engine—the electronic fan must meet both engine and motor cooling requirements.

 Installation Instructions

 Important Safety Note:
Electronic fan replacement involves electrical system work—must disconnect the vehicle 12V battery negative terminal before replacement to prevent  shock or short circuit. Professional technician operation recommended .

Tools Required:

• Lift or jack with safety stands

• Socket wrench / Screwdriver set

• Multimeter (for electrical testing)

• Clip removal tool

Installation Steps (General Reference):

1. Disconnect Power: Disconnect vehicle 12V battery negative terminal for safety

2. Remove Bumper/Shield: Remove front bumper or underbody shield to access fan assembly (depending on model)

3. Disconnect Electrical Connectors: Unplug power and control harness connectors from the fan assembly

4. Remove Mounting Bolts: Remove fan assembly mounting bolts to radiator or frame

5. Remove Old Fan Assembly: Carefully remove the old fan assembly

6. Clean Mounting Area: Clean radiator surface and fan mounting seats

7. Install New Fan Assembly: Position new fan assembly, pre-tighten mounting bolts

8. Connect Harness: Reconnect fan power and control harness, ensure secure connection

9. Reinstall Bumper/Shield: Reinstall front bumper or underbody shield

10. Reconnect & Test: Reconnect battery, start engine and turn on A/C—verify fan operation

【Professional Tips】:

• Functional testing is mandatory after replacement—confirm fan operates normally at idle and with A/C on

• Pay attention to fan rotation direction (suction direction) during installation—ensure airflow direction is correct

• Recommended to inspect radiator surface cleanliness when replacing fan assembly
