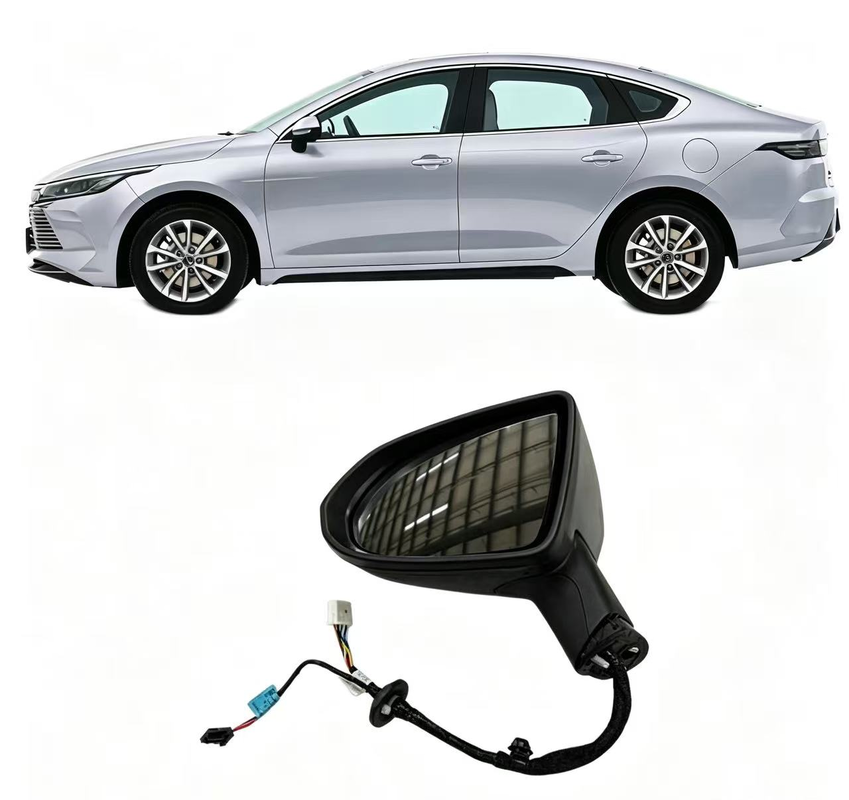

BYD Destroyer 05 Left Outside Rearview Mirror Assembly

This product is professionally designed for BYD’s popular Ocean Series model—the BYD Destroyer 05, serving as a critical safety and visibility component mounted on the outside of the left front door for observing rear traffic conditions.

As a professional manufacturing factory specializing in automotive exterior and safety parts, our left outside rearview mirror assembly strictly follows OE specifications, dedicated to providing the global aftermarket with high-precision, high-reliability replacement solutions.

The left outside rearview mirror assembly integrates mirror adjustment mechanisms, turn signal lights, housing, and folding motor (for high-end trims)—it is a core component ensuring driving safety and providing visibility for lane changes and reversing. The clarity of the mirror and adjustment precision directly affect driving safety.

Compatible with all BYD Destroyer 05 models (including 2022-2025, 55KM/120KM range versions, Champion Edition, and Glory Edition). According to aftermarket parts data, this product is same-platform compatible with the BYD Qin PLUS (2021-2024) —high interchangeability .

• The left outside rearview mirror assembly is a safety vision component—no regular replacement required under normal conditions.

• When the vehicle is involved in a left-side collision accident resulting in housing damage, broken glass, or internal mechanism failure, replacement of the complete assembly is recommended rather than replacing individual parts.

• If only the glass or turn signal is damaged, individual part replacement may be considered .

Installation Instructions

Tools Required:

•  Long screwdriver / Trim removal tool

•  Socket wrench (10mm/12mm)

•  Plastic clip removal tool

• Electrical tape (if wiring is required)

Installation Steps (General Reference):

1. Remove Door Trim: Remove left front door interior trim panel to expose mirror mounting position and harness connector

2. Disconnect Electrical Connector: Unplug power and control harness connectors from the mirror

3. Remove Mounting Bolts: Remove 3 mounting bolts securing mirror to door

4. Remove Old Mirror: Carefully remove the old left outside rearview mirror assembly

5. Compare & Confirm: Verify new part matches old in color, mounting hole positions, and connector type

6. Install New Mirror: Position new assembly, pre-tighten mounting bolts

7. Connect Harness: Reconnect mirror harness connector, ensure secure connection

8. Reinstall Door Trim: Reinstall door trim panel—secure clips and screws

9. Function Test: Start vehicle—test mirror adjustment, turn signal, heating, and folding functions

【Professional Tips】:

• Pay attention to housing color matching—Destroyer 05 is available in Predawn Gray, Snow White, Emperor Red, and other factory colors

• For high-trim models with 360° camera, camera calibration is required after mirror replacement

• Avoid pulling the harness during replacement to prevent internal wire damage

• Recommended to use OE No. HAD-8202100Q-D2/HAD-8202109Q-D1 for precise fitment
