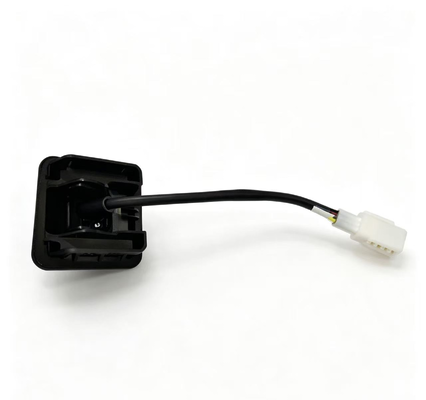

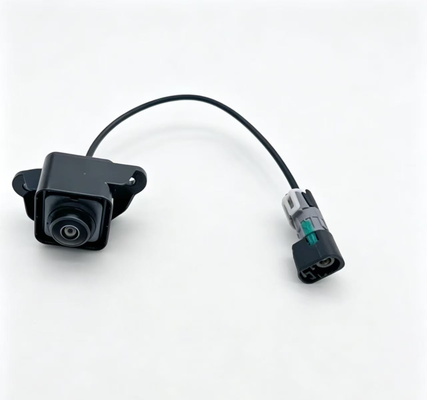

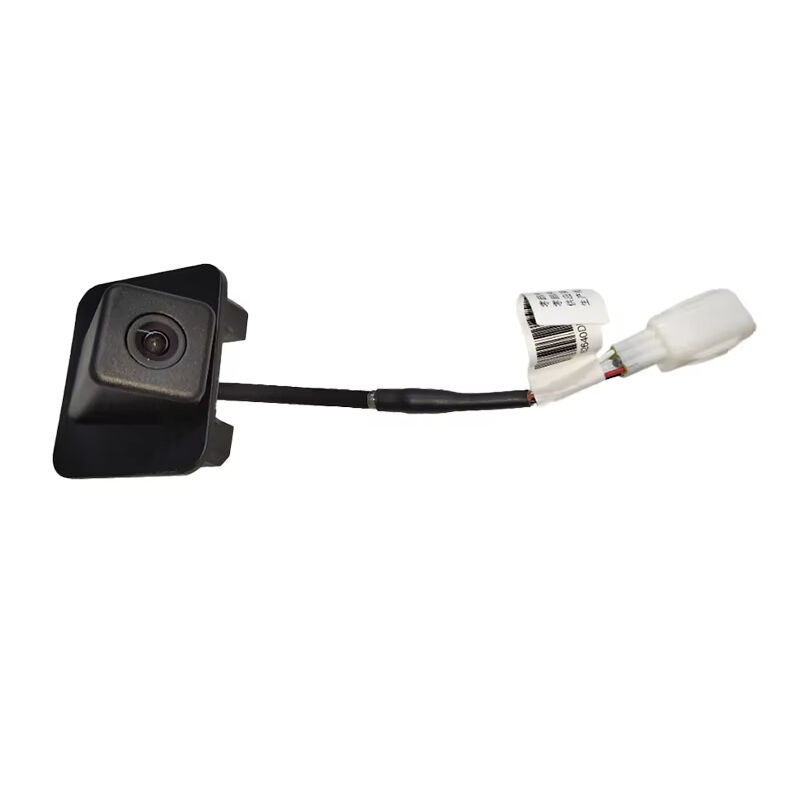

BYD Destroyer 05 Reverse Camera Assembly (Backup Camera)

This product is professionally designed for BYD’s popular Ocean Series model—the BYD Destroyer 05, serving as a core visual acquisition component for the reverse camera system and 360° surround view system.

As a professional manufacturing factory specializing in automotive electronics and visual safety parts, our reverse camera assembly strictly follows OE specifications, dedicated to providing the global aftermarket with high-definition, high-reliability replacement solutions.

The reverse camera assembly is the core sensor of the parking assistance system—during reversing, it captures real-time rear images and transmits them to the center console screen, helping drivers clearly observe rear obstacles and pedestrians. Low-trim models are equipped with reverse camera only, while high-trim models integrate it into the 360° surround view system . Its image quality and night vision performance directly affect parking safety and user experience.

Compatible with all BYD Destroyer 05 models (including 2022-2025, 55KM/120KM range versions, Champion Edition, and Glory Edition). Low-trim models (e.g., 55KM Luxury) come standard with reverse camera and parking sensors only , while mid/high-trim models feature the 360° surround view system, with the rear camera as a key component.

• The reverse camera assembly is an electronic consumable—no fixed replacement cycle under normal conditions, annual image quality inspection is recommended.

• When blurry image, no image, distorted image, or night vision failure occurs, prompt inspection and replacement are required.

• Recommended to inspect harness connectors and waterproof sealing when replacing to prevent recurring failure from moisture intrusion.

Installation Instructions

Tools Required:

• Plastic trim removal tool

• Screwdriver (Phillips/Flathead)

•  Cable ties

• Electrical tape (if wiring is required)

Installation Steps (General Reference):

1. Disconnect vehicle power: Recommended to disconnect 12V battery negative terminal for safety

2. Remove trunk trim: Use plastic trim removal tool to remove trunk interior trim—exposing camera mounting position and harness connector

3. Disconnect old camera connector: Unplug power and video signal connectors from the original camera

4. Remove old camera: Remove screws or clips securing the camera—remove the old camera assembly

5. Compare & confirm: Verify new part matches old in mounting position, connector type, and structure

6. Install new camera: Position new camera, secure mounting screws/clips

7. Connect harness: Reconnect power and video signal connectors—ensure secure contact

8. Secure harness: Use cable ties to secure wiring—avoid looseness and rattling

9. Reinstall trim: Reinstall trunk interior trim—secure clips and screws

10. Function test: Start vehicle, shift to R gear—verify reverse camera image is clear and normal

【Professional Tips】:

• Pay attention to camera waterproof sealing during installation—ensure sealing ring is properly seated to prevent moisture ingress and fogging

• Avoid pulling the harness excessively to prevent internal wire breakage

• Recommended to test image quality in both daylight and nighttime conditions after replacement—confirm clear imaging

• If equipped with 360° surround view system, camera calibration is recommended after rear camera replacement to ensure accurate image stitching
